| MOQ: | 5 CÁI |
| giá bán: | Có thể đàm phán |
| Bao bì tiêu chuẩn: | Thùng gỗ dán chuyên dùng xuất khẩu |
| Thời gian giao hàng: | 35 ngày |
| Phương thức thanh toán: | T/T |
| năng lực cung cấp: | 3000 chiếc / ngày |

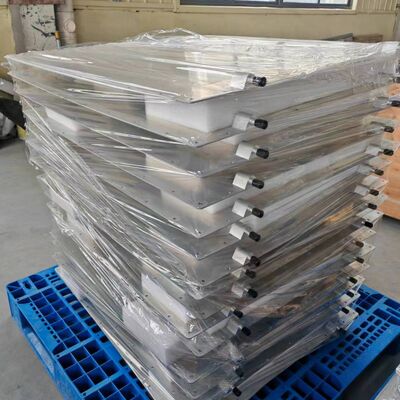

Product name:Reliable Brazed Aluminum Liquid Cold Plate for EV & HEV Power Battery Systems
Products introduction:
Focused on EV power battery packs, our liquid cold plate delivers exceptional thermal management to keep your batteries
operating at peak performance. Engineered with high-conductivity aluminum and advanced brazing technology, it ensures fast,
uniform cooling to eliminate hotspots, protect battery life, and boost charging efficiency. Lightweight, compact, and rigorously
leak-tested, it integrates easily into any battery pack layout, while customizable designs adapt to your unique requirements.
Durable, cost-effective, and built for automotive-grade reliability, it’s the perfect solution to elevate your EV battery performance
and safety.
Product Parameter
| Category | Details |
|---|---|
| Material Selection | Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used) |
| Key Processes | 1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination |
| Structural Design | 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm |
| Performance | 1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate |
| Cost | Typically RMB 27~35/kg, with relatively high tooling cost |
| Weight | Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area) |
| Lead Time | High design flexibility and short prototyping cycle |
| Maturity | Most widely adopted process, with >90% market share |
APPLICATION
Our liquid cold plate is specifically designed for EV power battery packs, widely applied in passenger electric vehicles (EVs), commercial electric vehicles (e.g., electric buses, trucks), hybrid electric vehicles (HEVs), and high-performance power battery systems. It provides reliable thermal management support for automotive OEMs, Tier 1 suppliers, and battery pack manufacturers, ensuring stable battery operation in various electric mobility scenarios.
Advantage
FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 18 years history in this industry.
Q: What is your terms of payment ?
A: Normally 100% T/T In advance,But this is something that can be negotiated.
Q: How long does it take for samples and mass production?
A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
băng hình
băng hình
băng hình
|
|
