| MOQ: | 300 chiếc |
| giá bán: | USD 100/pc |
| Bao bì tiêu chuẩn: | Bao bì xuất khẩu tiêu chuẩn như thùng carton/hộp gỗ |
| Thời gian giao hàng: | 30-40 ngày làm việc sau khi nhận được khoản thanh toán tạm ứng của bạn |
| Phương thức thanh toán: | T/T, L/C, Western Union |
| năng lực cung cấp: | 500.000 tấn mỗi năm |

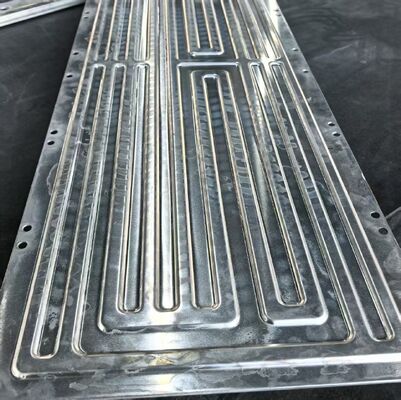

Our liquid cold plate is a high-performance thermal management solution specially designed for electric vehicle power battery packs. Using advanced stamping and vacuum brazing technology, it provides efficient, uniform cooling to maintain batteries within their optimal temperature range, effectively extending battery life, improving charging efficiency, and ensuring safe and stable operation under various working conditions.
Made of high-quality aluminum alloy, the liquid cold plate features excellent thermal conductivity, lightweight structure, and high pressure resistance. Each product undergoes strict helium leak testing to ensure zero leakage and long-term reliability. With customizable flow channels, dimensions, and interface designs, it can be flexibly integrated into different battery pack layouts.
This liquid cold plate is widely used in passenger EVs, commercial vehicles, hybrid power systems, and high-performance power battery applications, providing stable thermal control for modern electric mobility.
Technical Specifications:
| Category | Details |
|---|---|
| Material Selection | Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used) |
| Key Processes | 1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination |
| Structural Design | 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm |
| Performance | 1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate |
| Cost | Typically RMB 27~35/kg, with relatively high tooling cost |
| Weight | Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area) |
| Lead Time | High design flexibility and short prototyping cycle |
| Maturity | Most widely adopted process, with >90% market share |
Superior Thermal Performance
Lightweight & Compact Design
Reliable & Durable
Cost-Effective & Scalable
A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.
A2:The box body and related products such as top cover ,end plate and pipelines are available.
A3In fact, there is no (MOQ). Customized samples can also be provided.
A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation
A5:The sample stage: 40 -45 days.Mass production stage: 35 days
băng hình
băng hình
băng hình
|
|
| MOQ: | 300 chiếc |
| giá bán: | USD 100/pc |
| Bao bì tiêu chuẩn: | Bao bì xuất khẩu tiêu chuẩn như thùng carton/hộp gỗ |
| Thời gian giao hàng: | 30-40 ngày làm việc sau khi nhận được khoản thanh toán tạm ứng của bạn |
| Phương thức thanh toán: | T/T, L/C, Western Union |
| năng lực cung cấp: | 500.000 tấn mỗi năm |
Our liquid cold plate is a high-performance thermal management solution specially designed for electric vehicle power battery packs. Using advanced stamping and vacuum brazing technology, it provides efficient, uniform cooling to maintain batteries within their optimal temperature range, effectively extending battery life, improving charging efficiency, and ensuring safe and stable operation under various working conditions.
Made of high-quality aluminum alloy, the liquid cold plate features excellent thermal conductivity, lightweight structure, and high pressure resistance. Each product undergoes strict helium leak testing to ensure zero leakage and long-term reliability. With customizable flow channels, dimensions, and interface designs, it can be flexibly integrated into different battery pack layouts.
This liquid cold plate is widely used in passenger EVs, commercial vehicles, hybrid power systems, and high-performance power battery applications, providing stable thermal control for modern electric mobility.
Technical Specifications:
| Category | Details |
|---|---|
| Material Selection | Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used) |
| Key Processes | 1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination |
| Structural Design | 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm |
| Performance | 1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate |
| Cost | Typically RMB 27~35/kg, with relatively high tooling cost |
| Weight | Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area) |
| Lead Time | High design flexibility and short prototyping cycle |
| Maturity | Most widely adopted process, with >90% market share |
Superior Thermal Performance
Lightweight & Compact Design
Reliable & Durable
Cost-Effective & Scalable
A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.
A2:The box body and related products such as top cover ,end plate and pipelines are available.
A3In fact, there is no (MOQ). Customized samples can also be provided.
A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation
A5:The sample stage: 40 -45 days.Mass production stage: 35 days
